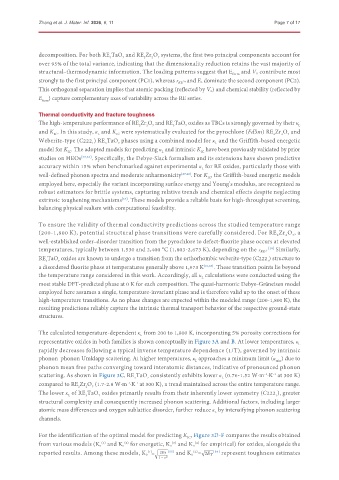

Page 146 - Read Online

Zhang et al. J. Mater. Inf. 2026, 6, 11 Page 7 of 17

decomposition. For both RE TaO and RE Zr O systems, the first two principal components account for
7
7
3
2
2
over 95% of the total variance, indicating that the dimensionality reduction retains the vast majority of
structural–thermodynamic information. The loading patterns suggest that E and V 0 contribute most
form
strongly to the first principal component (PC1), whereas r and E 0 dominate the second component (PC2).
RE3+
This orthogonal separation implies that atomic packing (reflected by V 0) and chemical stability (reflected by
E ) capture complementary axes of variability across the RE series.
form
Thermal conductivity and fracture toughness
The high-temperature performance of RE Zr O and RE TaO oxides as TBCs is strongly governed by their κ L
7
3
2
2
7
and K . In this study, κ and K were systematically evaluated for the pyrochlore (Fd3m) RE Zr O and
¯
IC
2
7
L
IC
2
Weberite-type (C222 ) RE TaO phases using a combined model for κ and the Griffith-based energetic
3
7
1
L
model for K . The adopted models for predicting κ and intrinsic K have been previously validated by prior
IC
L
IC
studies on HEOs [27,62] . Specifically, the Debye-Slack formalism and its extensions have shown predictive
accuracy within 15% when benchmarked against experimental κ for RE oxides, particularly those with
L
well-defined phonon spectra and moderate anharmonicity [27,44] . For K , the Griffith-based energetic models
IC
employed here, especially the variant incorporating surface energy and Young’s modulus, are recognized as
robust estimators for brittle systems, capturing relative trends and chemical effects despite neglecting
extrinsic toughening mechanisms . These models provide a reliable basis for high-throughput screening,
[62]
balancing physical realism with computational feasibility.
To ensure the validity of thermal conductivity predictions across the studied temperature range
(200-1,800 K), potential structural phase transitions were carefully considered. For RE Zr O , a
2
2
7
well-established order–disorder transition from the pyrochlore to defect-fluorite phase occurs at elevated
temperatures, typically between 1,530 and 2,400 °C (1,803-2,673 K), depending on the r RE3+ [18] Similarly,
RE TaO oxides are known to undergo a transition from the orthorhombic weberite-type (C222 ) structure to
1
7
3
a disordered fluorite phase at temperatures generally above 1,973 K [10,63] . These transition points lie beyond
the temperature range considered in this work. Accordingly, all κ calculations were conducted using the
L
most stable DFT-predicted phase at 0 K for each composition. The quasi-harmonic Debye–Grüneisen model
employed here assumes a single, temperature-invariant phase and is therefore valid up to the onset of these
high-temperature transitions. As no phase changes are expected within the modeled range (200-1,800 K), the
resulting predictions reliably capture the intrinsic thermal transport behavior of the respective ground-state
structures.
The calculated temperature-dependent κ from 200 to 1,800 K, incorporating 5% porosity corrections for
L
representative oxides in both families is shown conceptually in Figure 3A and B. At lower temperatures, κ L
rapidly decreases following a typical inverse temperature dependence (1/T), governed by intrinsic
phonon–phonon Umklapp scattering. At higher temperatures, κ approaches a minimum limit (κ ) due to
L
min
phonon mean free paths converging toward interatomic distances, indicative of pronounced phonon
scattering. As shown in Figure 3C, RE TaO consistently exhibits lower κ (0.76-1.52 W·m ·K at 300 K)
-1
-1
3
7
L
compared to RE Zr O (1.7-2.8 W·m ·K at 300 K), a trend maintained across the entire temperature range.
-1
-1
7
2
2
The lower κ of RE TaO oxides primarily results from their inherently lower symmetry (C222 ), greater
3
7
1
L
structural complexity and consequently increased phonon scattering. Additional factors, including larger
atomic mass differences and oxygen sublattice disorder, further reduce κ by intensifying phonon scattering
L
channels.
For the identification of the optimal model for predicting K , Figure 3D-F compares the results obtained
IC
from various models (K 0 and K 0 for energetic, K 0 and K 0 for empirical) for oxides, alongside the
(2)
(1)
(4)
(3)
reported results. Among these models, K 0 = √ 2 [55] and K 0 = 2 [56] represent toughness estimates
(2)
√
(1)
1 − 2
