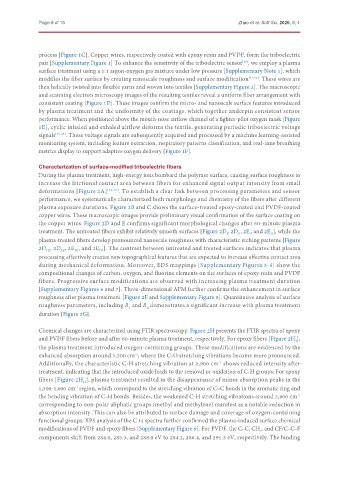

Page 6 of 15                                                          Zhao et al. Soft Sci. 2026, 6, 4





               process [Figure 1C]. Copper wires, respectively coated with epoxy resin and PVDF, form the triboelectric
               pair [Supplementary Figure 1] To enhance the sensitivity of the triboelectric sensor , we employ a plasma
                                                                                      [40]
               surface treatment using a 1:1 argon-oxygen gas mixture under low pressure [Supplementary Note 1], which
               modifies the fiber surface by creating nanoscale roughness and surface modification [41,42] . These wires are
               then helically twisted into flexible yarns and woven into textiles [Supplementary Figure 2]. The macroscopic
               and scanning electron microscopy images of the resulting textiles reveal a uniform fiber arrangement with
               consistent coating [Figure 1D]. These images confirm the micro- and nanoscale surface features introduced
               by plasma treatment and the uniformity of the coatings, which together underpin consistent sensor
               performance. When positioned above the mouth-nose airflow channel of a fighter-pilot oxygen mask [Figure
               1E], cyclic inhaled and exhaled airflow deforms the textile, generating periodic triboelectric voltage
               signals [43-45] . These voltage signals are subsequently acquired and processed by a machine learning-assisted
               monitoring system, including feature extraction, respiratory patterns classification, and real-time breathing
               metrics display to support adaptive oxygen delivery [Figure 1F].


               Characterization of surface-modified triboelectric fibers
               During the plasma treatment, high-energy ions bombard the polymer surface, causing surface roughness to
               increase the frictional contact area between fibers for enhanced signal output intensity from small
               deformations [Figure 2A] [42,46] . To establish a clear link between processing parameters and sensor
               performance, we systematically characterized both morphology and chemistry of the fibers after different
               plasma exposure durations. Figure 2B and C shows the surface-treated epoxy-coated and PVDF-coated
               copper wires. These macroscopic images provide preliminary visual confirmation of the surface coating on
               the copper wires. Figure 2D and E confirms significant morphological changes after 60-minute plasma
               treatment. The untreated fibers exhibit relatively smooth surfaces [Figure 2D , 2D , 2E , and 2E ], while the
                                                                                         I
                                                                                                II
                                                                                 I
                                                                                     II
               plasma-treated fibers develop pronounced nanoscale roughness with characteristic etching patterns [Figure
               2D , 2D , 2E , and 2E ]. The contrast between untreated and treated surfaces indicates that plasma
                                    IV
                           III
                 III
                      IV
               processing effectively creates new topographical features that are expected to increase effective contact area
               during mechanical deformation. Moreover, EDS mappings [Supplementary Figures 3-5] show the
               compositional changes of carbon, oxygen, and fluorine elements on the surfaces of epoxy resin and PVDF
               fibers. Progressive surface modifications are observed with increasing plasma treatment duration
               [Supplementary Figures 6 and 7]. Three-dimensional AFM further confirms the enhancement in surface
               roughness after plasma treatment [Figure 2F and Supplementary Figure 8]. Quantitative analysis of surface
               roughness parameters, including R  and R  demonstrates a significant increase with plasma treatment
                                                     q
                                              a
               duration [Figure 2G].
               Chemical changes are characterized using FTIR spectroscopy. Figure 2H presents the FTIR spectra of epoxy
               and PVDF fibers before and after 60-minute plasma treatment, respectively. For epoxy fibers [Figure 2H ],
                                                                                                         I
               the plasma treatment introduced oxygen-containing groups. These modifications are evidenced by the
               enhanced absorption around 1,200 cm , where the C-O stretching vibrations become more pronounced.
                                                -1
               Additionally, the characteristic C-H stretching vibration at 2,900 cm  shows reduced intensity after
                                                                              -1
               treatment, indicating that the introduced oxide leads to the removal or oxidation of C-H groups. For epoxy
               fibers [Figure 2H ], plasma treatment resulted in the disappearance of minor absorption peaks in the
                              II
               1,500-1,600 cm  region, which correspond to the stretching vibration of C=C bonds in the aromatic ring and
                           -1
               the bending vibration of C–H bonds. Besides, the weakened C-H stretching vibrations around 2,900 cm -1
               corresponding to non-polar aliphatic groups (methyl and methylene) manifest as a notable reduction in
               absorption intensity. This can also be attributed to surface damage and coverage of oxygen-containing
               functional groups. XPS analysis of the C 1s spectra further confirmed the plasma-induced surface chemical
               modifications of PVDF and epoxy fibers [Supplementary Figure 9]. For PVDF, the C–C, CH , and CF/C–C–F
                                                                                            2
               components shift from 284.0, 285.3, and 288.0 eV to 284.2, 286.4, and 291.3 eV, respectively. The binding
