Wang et al. Soft Sci 2024;4:41 https://dx.doi.org/10.20517/ss.2024.53 Page 21 of 43

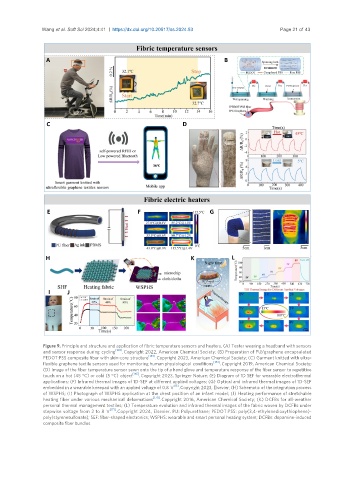

Figure 9. Principle and structure and application of fibric temperature sensors and heaters. (A) Tester wearing a headband with sensors
and sensor response during cycling [160] . Copyright 2022, American Chemical Society; (B) Preparation of PU/graphene encapsulated
PEDOT:PSS composite fiber with skin-core structure [153] . Copyright 2023, American Chemical Society; (C) Garment knitted with ultra-
flexible graphene textile sensors used for monitoring human physiological conditions [163] . Copyright 2019, American Chemical Society;
(D) Image of the fiber temperature sensor sewn onto the tip of a hand glove and temperature response of the fiber sensor to repetitive
touch on a hot (45 °C) or cold (5 °C) object [165] . Copyright 2023, Springer Nature; (E) Diagram of 1D SEF for wearable electrothermal
applications; (F) Infrared thermal images of 1D-SEF at different applied voltages; (G) Optical and infrared thermal images of 1D-SEF
embedded in a wearable kneepad with an applied voltage of 0.8 V [15] . Copyright 2023, Elsevier; (H) Schematic of the integration process
of WSPHS; (I) Photograph of WSPHS application at the chest position of an infant model; (J) Heating performance of stretchable
heating fiber under various mechanical deformations [170] . Copyright 2016, American Chemical Society; (K) DCFBs for all-weather
personal thermal management textiles; (L) Temperature evolution and infrared thermal images of the fabric woven by DCFBs under
stepwise voltage from 2 to 8 V [171] . Copyright 2024, Elsevier. PU: Polyurethane; PEDOT:PSS: poly(3,4-ethylenedioxythiophene)-
poly(styrenesulfonate); SEF: fiber-shaped electronics; WSPHS: wearable and smart personal heating system; DCFBs: dopamine-induced
composite fiber bundles.
