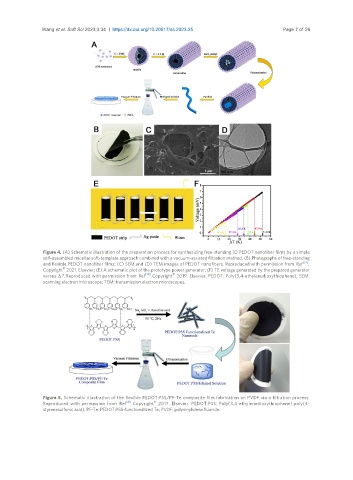

Figure 4. (A) Schematic illustration of the preparation process for synthesizing free-standing 1D PEDOT nanofiber films by a simple
self-assembled micellar soft-template approach combined with a vacuum-assisted filtration method; (B) Photographs of free-standing
and flexible PEDOT nanofiber films; (C) SEM and (D) TEM images of PEDOT nanofibers. Reproduced with permission from Ref [37] .
©
Copyright 2021. Elsevier; (E) A schematic plot of the prototype power generator; (F) TE voltage generated by the prepared generator
©
versus ΔT. Reproduced with permission from Ref [38] . Copyright 2019. Elsevier. PEDOT: Poly(3,4-ethylenedioxythiophene); SEM:
scanning electron microscope; TEM: transmission electron microscopes.
Figure 5. Schematic illustration of the flexible PEDOT:PSS/PF-Te composite film fabrication on PVDF via a filtration process.
©
Reproduced with permission from Ref [41] . Copyright 2017. Elsevier. PEDOT:PSS: Poly(3,4-ethylenedioxythiophene):poly(4-
styrenesulfonic acid); PF-Te: PEDOT:PSS-functionalized Te; PVDF: polyvinylidene fluoride.
