Page 12 of 15 Allen et al. J Mater Inf 2024;4:35 https://dx.doi.org/10.20517/jmi.2024.72

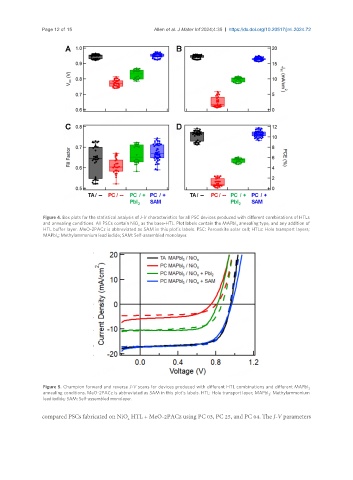

Figure 4. Box plots for the statistical analysis of J-V characteristics for all PSC devices produced with different combinations of HTLs
and annealing conditions. All PSCs contain NiO as the base-HTL. Plot labels contain the MAPbI annealing type, and any addition of
x 3
HTL buffer layer. MeO-2PACz is abbreviated as SAM in this plot’s labels. PSC: Perovskite solar cell; HTLs: Hole transport layers;
MAPbI : Methylammonium lead iodide; SAM: Self-assembled monolayer.
3
Figure 5. Champion forward and reverse J-V scans for devices produced with different HTL combinations and different MAPbI 3
annealing conditions. MeO-2PACz is abbreviated as SAM in this plot’s labels. HTL: Hole transport layer; MAPbI : Methylammonium
3
lead iodide; SAM: Self-assembled monolayer.
compared PSCs fabricated on NiO HTL + MeO-2PACz using PC 03, PC 25, and PC 04. The J-V parameters
x
