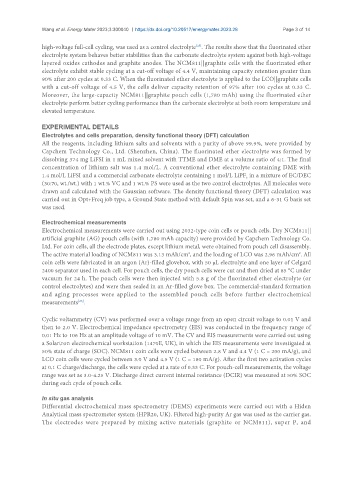

Wang et al. Energy Mater 2023;3:300040  https://dx.doi.org/10.20517/energymater.2023.28  Page 3 of 14

                                                                   [25]
               high-voltage full-cell cycling, was used as a control electrolyte . The results show that the fluorinated ether
               electrolyte system behaves better stabilities than the carbonate electrolyte system against both high-voltage
               layered oxides cathodes and graphite anodes. The NCM811||graphite cells with the fluorinated ether
               electrolyte exhibit stable cycling at a cut-off voltage of 4.4 V, maintaining capacity retention greater than
               90% after 200 cycles at 0.33 C. When the fluorinated ether electrolyte is applied to the LCO||graphite cells
               with a cut-off voltage of 4.5 V, the cells deliver capacity retention of 97% after 100 cycles at 0.33 C.
               Moreover, the large-capacity NCM811||graphite pouch cells (1,780 mAh) using the fluorinated ether
               electrolyte perform better cycling performance than the carbonate electrolyte at both room temperature and
               elevated temperature.


               EXPERIMENTAL DETAILS
               Electrolytes and cells preparation, density functional theory (DFT) calculation
               All the reagents, including lithium salts and solvents with a purity of above 99.9%, were provided by
               Capchem Technology Co., Ltd. (Shenzhen, China). The fluorinated ether electrolyte was formed by
               dissolving 374 mg LiFSI in 1 mL mixed solvent with TTME and DME at a volume ratio of 4:1. The final
               concentration of lithium salt was 1.4 mol/L. A conventional ether electrolyte containing DME with
               1.4 mol/L LiFSI and a commercial carbonate electrolyte containing 1 mol/L LiPF  in a mixture of EC/DEC
                                                                                    6
               (30:70, wt./wt.) with 1 wt.% VC and 1 wt.% PS were used as the two control electrolytes. All molecules were
               drawn and calculated with the Gaussian software. The density functional theory (DFT) calculation was
               carried out in Opt+Freq job type, a Ground State method with default Spin was set, and a 6-31 G basis set
               was used.

               Electrochemical measurements
               Electrochemical measurements were carried out using 2032-type coin cells or pouch cells. Dry NCM811||
               artificial graphite (AG) pouch cells (with 1,780 mAh capacity) were provided by Capchem Technology Co.
               Ltd. For coin cells, all the electrode plates, except lithium metal, were obtained from pouch cell disassembly.
                                                                 2
                                                                                                      2
               The active material loading of NCM811 was 3.13 mAh/cm , and the loading of LCO was 2.96 mAh/cm . All
               coin cells were fabricated in an argon (Ar)-filled glovebox, with 50 μL electrolyte and one layer of Celgard
               2400 separator used in each cell. For pouch cells, the dry pouch cells were cut and then dried at 85 °C under
               vacuum for 24 h. The pouch cells were then injected with 5.8 g of the fluorinated ether electrolyte (or
               control electrolytes) and were then sealed in an Ar-filled glove box. The commercial-standard formation
               and  aging  processes  were  applied  to  the  assembled  pouch  cells  before  further  electrochemical
               measurements .
                           [26]
               Cyclic voltammetry (CV) was performed over a voltage range from an open circuit voltage to 0.01 V and
               then to 2.0 V. Electrochemical impedance spectrometry (EIS) was conducted in the frequency range of
               0.01 Hz to 106 Hz at an amplitude voltage of 10 mV. The CV and EIS measurements were carried out using
               a Solartron electrochemical workstation (1470E, UK), in which the EIS measurements were investigated at
               50% state of charge (SOC). NCM811 coin cells were cycled between 2.8 V and 4.4 V (1 C = 200 mA/g), and
               LCO coin cells were cycled between 3.0 V and 4.5 V (1 C = 180 mA/g). After the first two activation cycles
               at 0.1 C charge/discharge, the cells were cycled at a rate of 0.33 C. For pouch-cell measurements, the voltage
               range was set as 3.0-4.25 V. Discharge direct current internal resistance (DCIR) was measured at 50% SOC
               during each cycle of pouch cells.

               In situ gas analysis
               Differential electrochemical mass spectrometry (DEMS) experiments were carried out with a Hiden
               Analytical mass spectrometer system (HPR20, UK). Filtered high-purity Ar gas was used as the carrier gas.
               The  electrodes  were  prepared  by  mixing  active  materials  (graphite  or  NCM811),  super  P,  and
