Page 75 - Read Online
P. 75

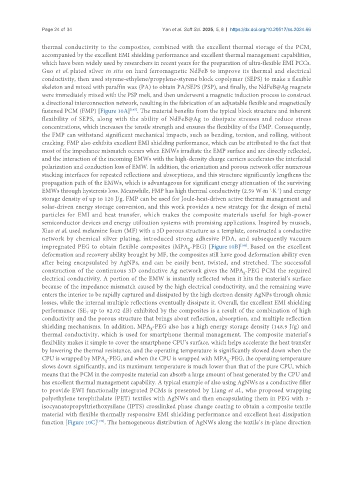

Page 24 of 34                            Yan et al. Soft Sci. 2025, 5, 8  https://dx.doi.org/10.20517/ss.2024.66

               thermal conductivity to the composites, combined with the excellent thermal storage of the PCM,
               accompanied by the excellent EMI shielding performance and excellent thermal management capabilities,
               which have been widely used by researchers in recent years for the preparation of ultra-flexible EMI PCCs.
               Guo et al. plated silver in situ on hard ferromagnetic NdFeB to improve its thermal and electrical
               conductivity, then used styrene-ethylene/propylene-styrene block copolymer (SEPS) to make a flexible
               skeleton and mixed with paraffin wax (PA) to obtain PA/SEPS (PSP), and finally, the NdFeB@Ag magnets
               were immediately mixed with the PSP melt, and then underwent a magnetic induction process to construct
               a directional interconnection network, resulting in the fabrication of an adjustable flexible and magnetically
               fastened PCM (FMP) [Figure 10A] . The material benefits from the typical block structure and inherent
                                             [147]
               flexibility  of  SEPS,  along  with  the  ability  of  NdFeB@Ag  to  dissipate  stresses  and  reduce  stress
               concentrations, which increases the tensile strength and ensures the flexibility of the FMP. Consequently,
               the FMP can withstand significant mechanical impacts, such as bending, torsion, and rolling, without
               cracking. FMP also exhibits excellent EMI shielding performance, which can be attributed to the fact that
               most of the impedance mismatch occurs when EMWs irradiate the EMP surface and are directly reflected,
               and the interaction of the incoming EMWs with the high-density charge carriers accelerates the interfacial
               polarization and conduction loss of EMW. In addition, the orientation and porous network offer numerous
               stacking interfaces for repeated reflections and absorptions, and this structure significantly lengthens the
               propagation path of the EMWs, which is advantageous for significant energy attenuation of the surviving
                                                                                              -1
                                                                                           -1
               EMWs through hysteresis loss. Meanwhile, FMP has high thermal conductivity (2.59 W·m ·K ) and energy
               storage density of up to 120 J/g. FMP can be used for Joule-heat-driven active thermal management and
               solar-driven energy storage conversion, and this work provides a new strategy for the design of metal
               particles for EMI and heat transfer, which makes the composite materials useful for high-power
               semiconductor devices and energy utilization systems with promising applications. Inspired by mussels,
               Xiao et al. used melamine foam (MF) with a 3D porous structure as a template, constructed a conductive
               network by chemical silver plating, introduced strong adhesive PDA, and subsequently vacuum
                                                                                  [148]
               impregnated PEG to obtain flexible composites (MPA -PEG) [Figure 10B] . Based on the excellent
                                                                χ
               deformation and recovery ability brought by MF, the composites still have good deformation ability even
               after being encapsulated by AgNPs, and can be easily bent, twisted, and stretched. The successful
               construction of the continuous 3D conductive Ag network gives the MPA -PEG PCM the required
                                                                                   χ
               electrical conductivity. A portion of the EMW is instantly reflected when it hits the material’s surface
               because of the impedance mismatch caused by the high electrical conductivity, and the remaining wave
               enters the interior to be rapidly captured and dissipated by the high electron density AgNPs through ohmic
               losses, while the internal multiple reflections eventually dissipate it. Overall, the excellent EMI shielding
               performance (SE  up to 82.02 dB) exhibited by the composites is a result of the combination of high
                              T
               conductivity and the porous structure that brings about reflection, absorption, and multiple reflection
               shielding mechanisms. In addition, MPA -PEG also has a high energy storage density (148.9 J/g) and
                                                    χ
               thermal conductivity, which is used for smartphone thermal management. The composite material’s
               flexibility makes it simple to cover the smartphone CPU’s surface, which helps accelerate the heat transfer
               by lowering the thermal resistance, and the operating temperature is significantly slowed down when the
               CPU is wrapped by MPA -PEG, and when the CPU is wrapped with MPA -PEG, the operating temperature
                                    χ
                                                                              χ
               slows down significantly, and its maximum temperature is much lower than that of the pure CPU, which
               means that the PCM in the composite material can absorb a large amount of heat generated by the CPU and
               has excellent thermal management capability. A typical example of also using AgNWs as a conductive filler
               to provide EWI functionally integrated PCMs is presented by Liang et al., who proposed wrapping
               polyethylene terephthalate (PET) textiles with AgNWs and then encapsulating them in PEG with 3-
               isocyanatopropyltriethoxysilane (IPTS) crosslinked phase change coating to obtain a composite textile
               material with flexible thermally responsive EMI shielding performance and excellent heat dissipation
               function [Figure 10C] . The homogeneous distribution of AgNWs along the textile’s in-plane direction
                                  [149]
   70   71   72   73   74   75   76   77   78   79   80
