Page 18 of 35 Huang et al. Soft Sci 2024;4:40 https://dx.doi.org/10.20517/ss.2024.37

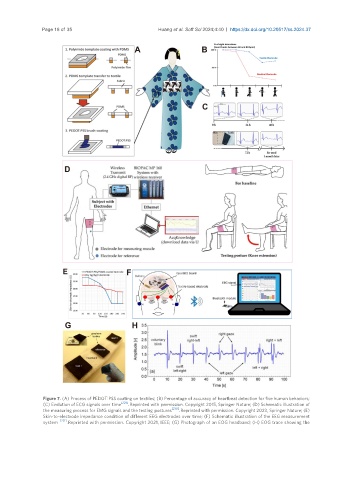

Figure 7. (A) Process of PEDOT:PSS coating on textiles; (B) Percentage of accuracy of heartbeat detection for five human behaviors;
[229]
(C) Evolution of ECG signals over time . Reprinted with permission. Copyright 2015, Springer Nature; (D) Schematic illustration of
[230]
the measuring process for EMG signals and the testing postures . Reprinted with permission. Copyright 2023, Springer Nature; (E)
Skin-to-electrode impedance condition of different EEG electrodes over time; (F) Schematic illustration of the EEG measurement
[231]
system . Reprinted with permission. Copyright 2021, IEEE; (G) Photograph of an EOG headband; (H) EOG trace showing the
